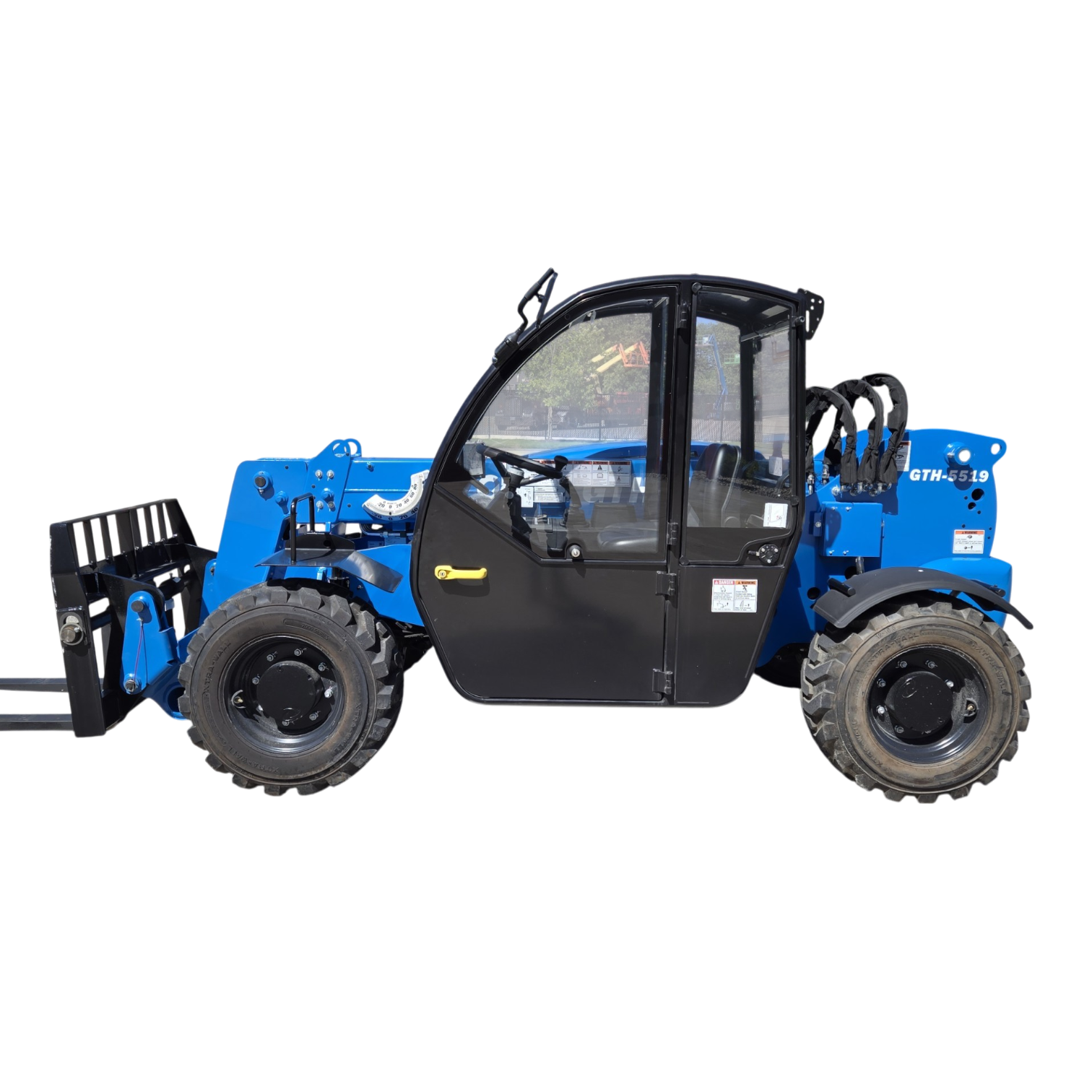

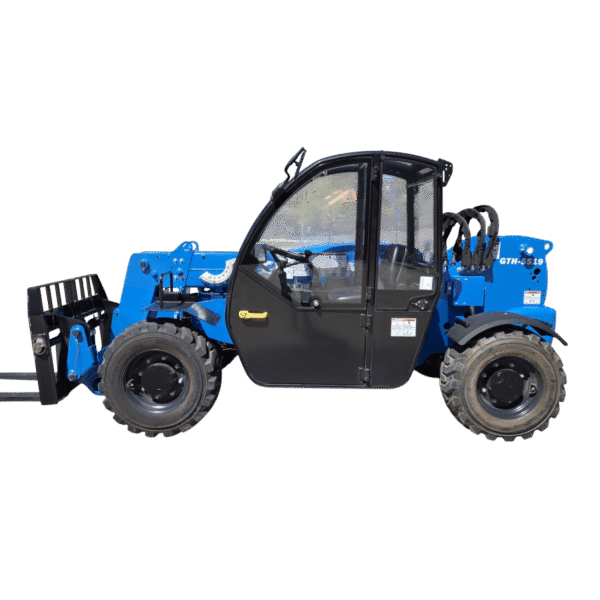

Genie® GTH™-5519

🔧 Key Specifications

• Maximum Lift Capacity: 5,500 lb (2,495 kg)
• Maximum Lift Height: 18 ft 10 in (5.74 m)
• Maximum Forward Reach: 11 ft 3 in (3.43 m)
• Capacity at Maximum Height: 4,400 lb (1,996 kg)
• Capacity at Maximum Reach: 1,900 lb (862 kg)
• Operating Weight: 10,360 lb (4,700 kg)
• Engine: 74 hp Deutz TCD 2.9L Tier 4 Final diesel
• Drive Speed: Up to 15 mph (24 km/h)
• Turning Radius (Outside): 11 ft (3.35 m)
• Hydraulic Flow: 17 gpm (64 lpm)
• Hydraulic Pressure: 3,918 psi (270 bar)
• Fuel Tank Capacity: 15.8 gal (59.8 L)
