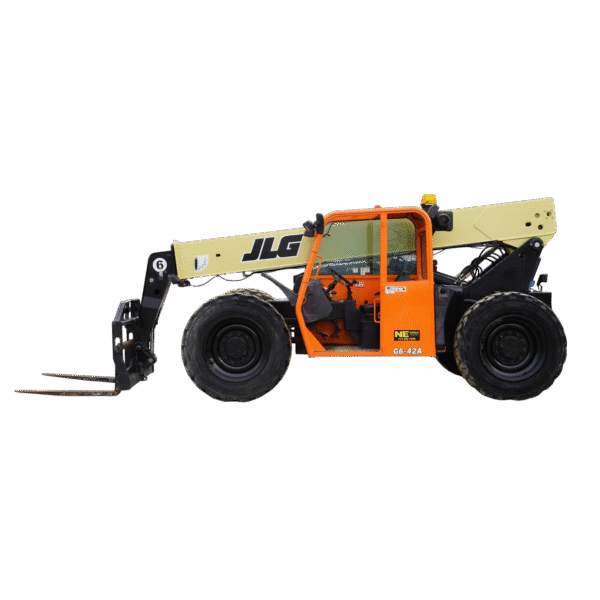

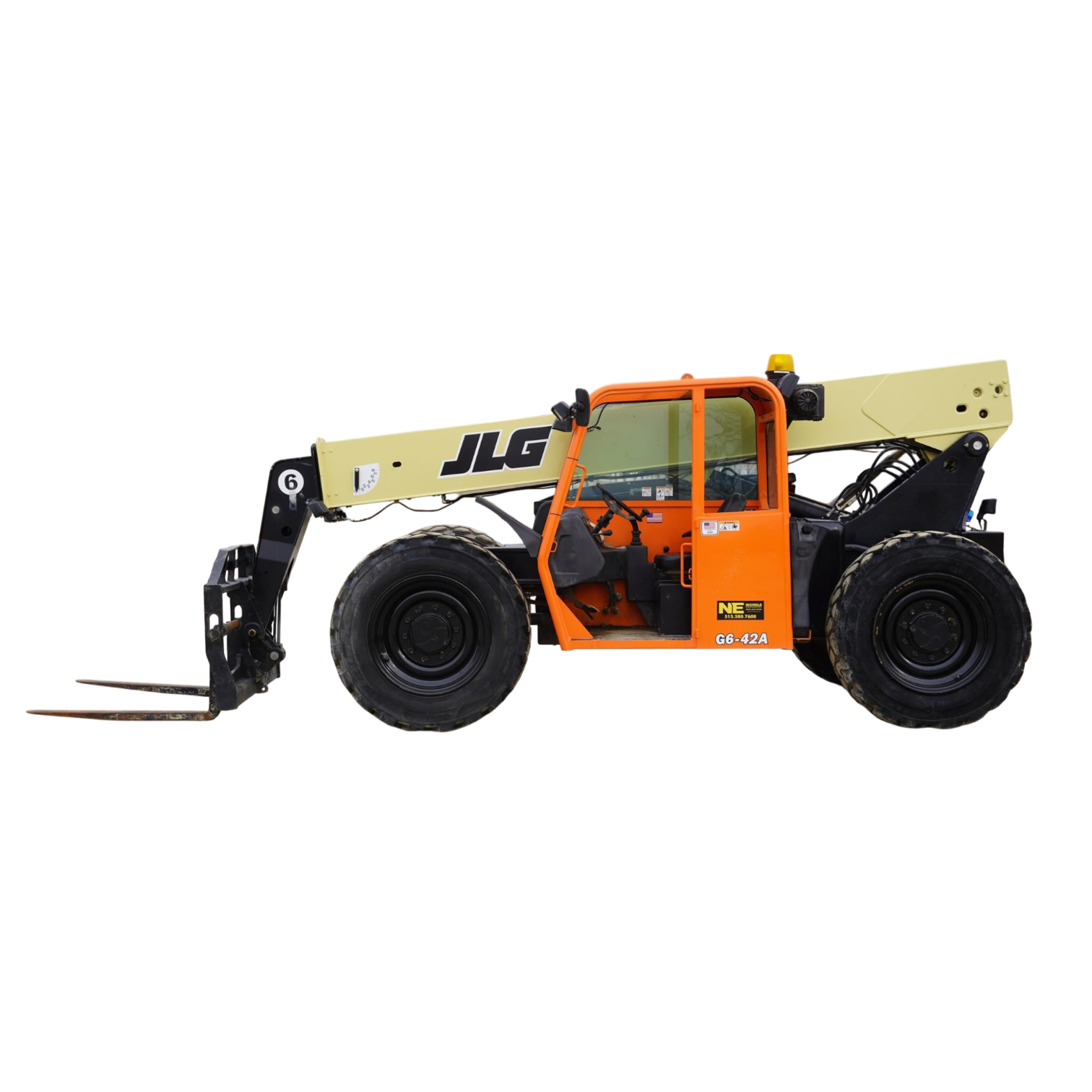

JLG G6-42A

🔧 Key Specifications

• Maximum Lift Capacity: 6,600 lb (2,994 kg)
• Maximum Lift Height: 42 ft (12.8 m)
• Maximum Forward Reach: 29 ft (8.84 m)
• Capacity at Maximum Height: 6,000 lb (2,722 kg)
• Capacity at Maximum Reach: 1,000 lb (454 kg)
• Operating Weight: Approximately 20,400 lb (9,253 kg)
• Engine: John Deere 4045TF150, 99 hp @ 2,500 rpm
• Transmission: Dana VDT-12000 powershift with torque converter
• Drive: Full-time 4-wheel drive
• Steering Modes: 2-wheel front, 4-wheel circle, 4-wheel crab
• Maximum Travel Speed: 19.5 mph (31.4 km/h)
• Fuel Tank Capacity: 38 gal (144 L)
• Hydraulic System Capacity: 40 gal (151.4 L)
