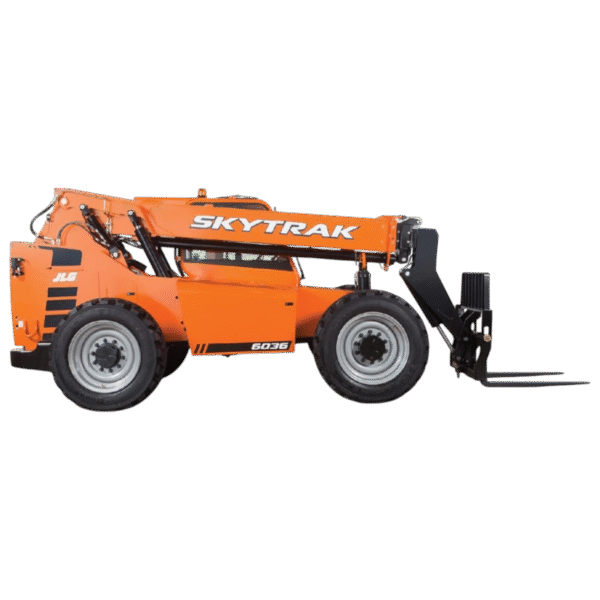

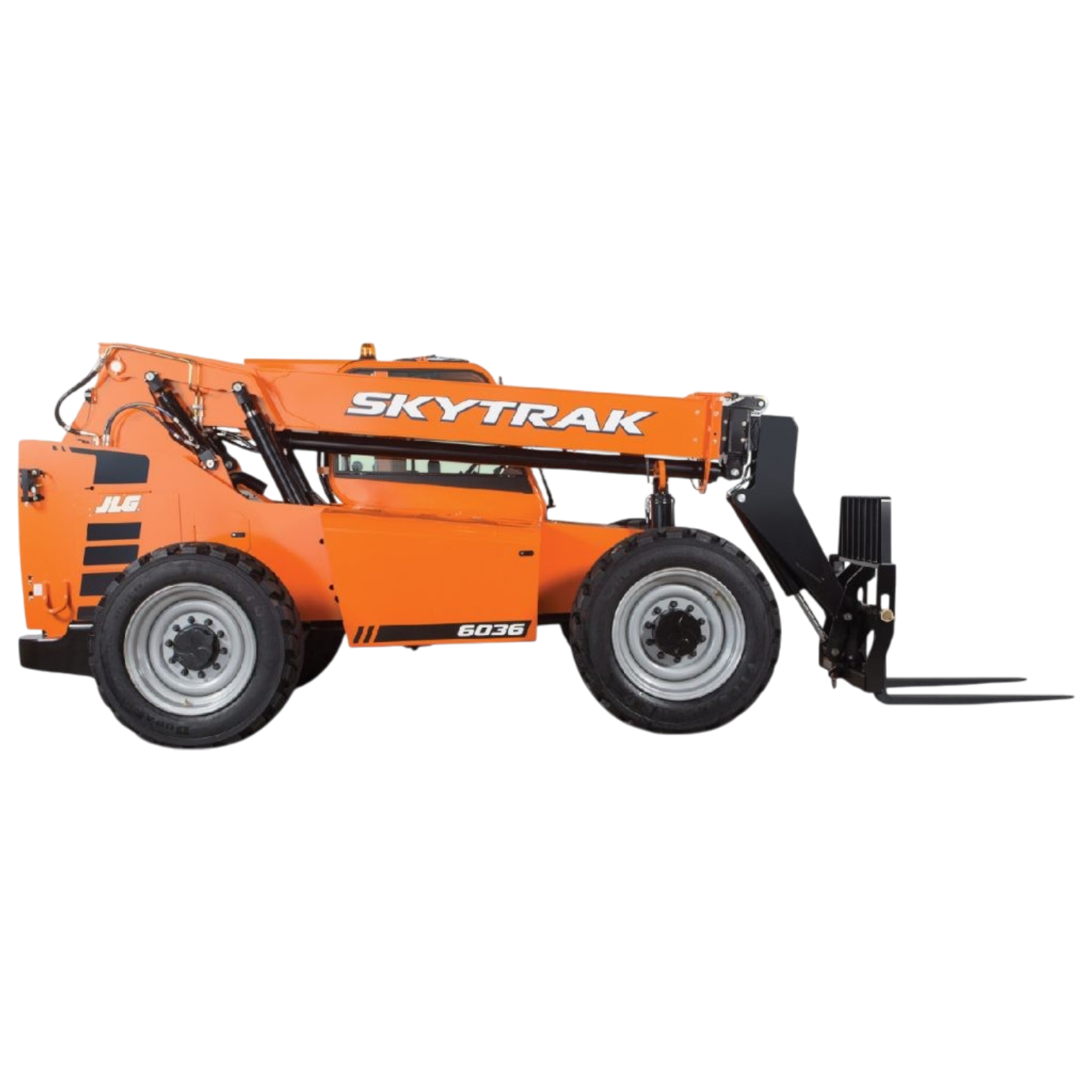

SkyTrak 6036

🔧 Key Specifications

• Maximum Lift Capacity: 6,000 lbs (2,722 kg)
• Maximum Lift Height: 36 ft 1 in (11.0 m)
• Maximum Forward Reach: 22 ft 4 in (6.8 m)
• Lift Capacity at Max Reach: 1,800 lbs (816 kg)
• Operating Weight: Approximately 21,300 lbs (9,662 kg)
• Engine: Cummins QSF3.8L Tier 4 Final, 74 hp (55 kW)
• Transmission: Powershift, 4-speed forward and 3-speed reverse
• Fuel Tank Capacity: 35 gallons (132.5 L)
• Hydraulic System Capacity: 45.5 gallons (172.2 L)
• Top Travel Speed: 19 mph (31 km/h)
• Drawbar Pull (loaded): 22,000 lbs (98 kN)
• Turning Radius (outside): 165 in (4.19 m)
